Everything You Need to Know about Alumina Ceramics

Alumina ceramics, also known as aluminum oxide ceramics, are one of the most widely used ceramic materials due to their exceptional properties, including high hardness, excellent wear resistance, and thermal stability. These ceramics play a significant role in a variety of industries, from electronics and manufacturing to medical and automotive fields. Here, we’ll dive into the basics of alumina ceramics, their types, key properties, and the applications where they excel.

1. What Are Alumina Ceramics?

Alumina ceramics are made primarily from aluminum oxide, a compound known for its robustness and resistance to corrosion. Typically, alumina ceramics are manufactured using a high-temperature sintering process that produces a dense, strong ceramic. Available in a range of purities, alumina ceramics can be customized for specific applications and performance requirements.

Purity Levels: Alumina ceramics are often categorized by their purity levels, with common grades including 85%, 90%, 96%, and 99.9% alumina. Higher-purity alumina offers enhanced mechanical and electrical properties, making it suitable for more demanding applications.

Applications: Due to their versatility, alumina ceramics are commonly used in electronics, machinery, aerospace, and medical devices, where they provide strength, heat resistance, and chemical stability.

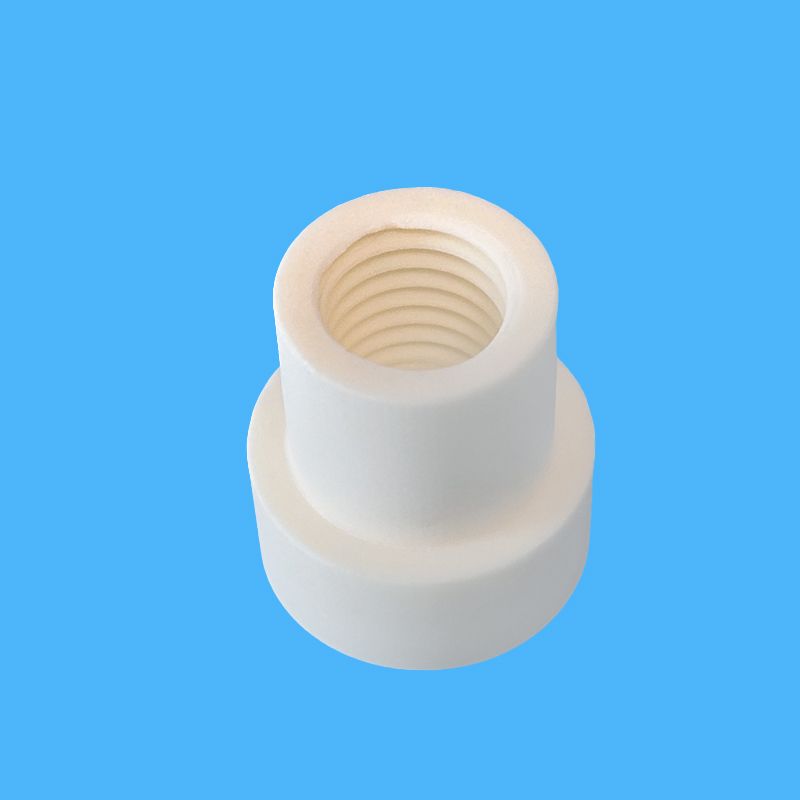

Alumina Ceramic Threading

2. Key Properties of Alumina Ceramics

Alumina ceramics offer several advantageous properties that make them ideal for high-performance applications.

Hardness and Strength: Alumina ceramics are exceptionally hard, making them highly resistant to wear and scratches. This property is especially valuable in cutting tools and abrasive applications.

Thermal Stability: With a melting point above 2000°C, alumina ceramics maintain stability under high temperatures, making them suitable for use in extreme environments.

Chemical Resistance: Alumina is resistant to most chemicals, including acids and alkalis, making it a durable choice for chemically aggressive environments.

Electrical Insulation: Alumina is an excellent electrical insulator, which makes it ideal for electronic components that require resistance to electrical currents.

3. Types of Alumina Ceramics

Several types of alumina ceramics are available, tailored to specific needs and applications.

High-Purity Alumina: This type contains 99.5% to 99.9% alumina and is used in applications requiring excellent thermal and electrical insulation, such as substrates for electronic circuits.

Standard Purity Alumina: With a typical purity of 85% to 95%, standard alumina ceramics are ideal for general-purpose applications where extreme conditions are not a factor, such as mechanical parts and insulators.

Zirconia Toughened Alumina (ZTA): ZTA ceramics combine alumina with zirconia for enhanced toughness. They are commonly used in wear parts, such as seals and pump components, due to their improved impact resistance.

4. Manufacturing Process of Alumina Ceramics

Producing alumina ceramics involves a high-temperature sintering process, where powdered alumina is pressed and heated to create a dense, solid material. The manufacturing process varies depending on the desired shape, density, and purity of the final product.

Powder Preparation: Alumina powder is first prepared and mixed with binders and lubricants to aid the pressing process.

Pressing and Forming: The powder mixture is pressed into shape using either uniaxial or isostatic pressing methods, depending on the desired shape and complexity of the ceramic part.

Sintering: The shaped ceramics are heated to high temperatures in a controlled atmosphere to achieve the final density and strength. This sintering process typically involves temperatures of over 1600°C for high-purity alumina ceramics.

5. Common Applications of Alumina Ceramics

Thanks to their impressive durability, alumina ceramics are employed across a wide range of industries.

Electronics: Alumina’s electrical insulation properties make it ideal for use in substrates, capacitors, and resistors. High-purity alumina ceramics are also used in the production of microelectronics and integrated circuits.

Medical Devices: Alumina ceramics are biocompatible, making them suitable for implants, prosthetics, and medical equipment that require both strength and chemical inertness.

Industrial Equipment: Alumina ceramics are used in applications where wear resistance is crucial, such as pump seals, valves, and machining tools. They also perform well in environments where high heat and chemical resistance are needed.

Aerospace: Alumina ceramics are used in thermal insulation systems, high-temperature engine components, and protective coatings in the aerospace industry.

Questions and Answers About Alumina Ceramics

Q1: What is the primary benefit of high-purity alumina ceramics?

A1: High-purity alumina ceramics (99.5% or greater) offer superior thermal and electrical insulation, making them ideal for demanding applications in electronics and high-temperature environments.

Q2: Can alumina ceramics withstand high-impact applications?

A2: While alumina ceramics are highly durable and wear-resistant, they can be brittle. Zirconia Toughened Alumina (ZTA) is often used in applications requiring higher impact resistance.

Q3: Why are alumina ceramics preferred for medical applications?

A3: Alumina ceramics are biocompatible, chemically inert, and have high strength, making them suitable for implants and medical devices that need to resist wear and corrosion within the body.

Alumina ceramics are a versatile and essential material in various industries, offering unique benefits in thermal stability, electrical insulation, and chemical resistance. Their diverse types and customizable properties make them an excellent choice for applications ranging from electronics and machinery to aerospace and healthcare.
