How is Aluminium Tube Measured?

Aluminium tubes are versatile and used in a variety of industries, including construction, automotive, and manufacturing. To ensure proper usage and compatibility, it is essential to measure aluminium tubes accurately. This guide explains how aluminium tubes are measured, the dimensions involved, and tools commonly used in the process.

Key Dimensions for Measuring Aluminium Tubes

When measuring aluminium tubes, there are several key dimensions to consider:

1. Outer Diameter (OD)

The outer diameter is the measurement of the tube's external width, taken from one outside edge to the opposite outside edge. This is the most common measurement used to classify aluminium tubes.

2. Inner Diameter (ID)

The inner diameter measures the width of the hollow portion inside the tube, from one inner edge to the opposite inner edge. This dimension is critical for applications requiring fluid or gas flow through the tube.

3. Wall Thickness

Wall thickness is the distance between the outer surface and the inner surface of the tube. It is calculated as:

Wall Thickness = (OD - ID) / 2

4. Length

The length refers to the tube's linear measurement from one end to the other. This dimension is usually specified in millimeters, centimeters, or meters.

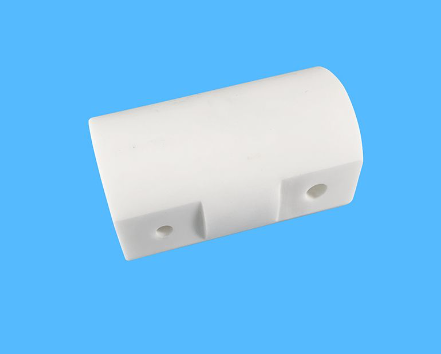

 99. 9% Aluminium Tube

Tools for Measuring Aluminium Tubes

Accurate measurements require the right tools. Below are common tools used for measuring aluminium tubes:

1. Vernier Caliper

A vernier caliper is ideal for measuring the outer diameter, inner diameter, and wall thickness with precision. Digital or dial calipers are popular for their ease of use.

2. Micrometer

Micrometers are highly precise tools used to measure wall thickness, especially for thin-walled aluminium tubes.

3. Tape Measure

For measuring the length of the tube, a tape measure is a practical tool, particularly for longer tubes.

4. Laser Measuring Tools

Laser measuring tools are used for highly accurate length measurements, especially in industrial applications.

Step-by-Step Guide to Measuring Aluminium Tubes

Follow these steps to measure an aluminium tube accurately:

1. Measure the Outer Diameter (OD)

Use a vernier caliper or micrometer to measure the distance across the widest part of the tube’s outer surface.

2. Measure the Inner Diameter (ID)

Insert the caliper’s jaws into the hollow part of the tube and measure the distance across the inner surface.

3. Calculate the Wall Thickness

Subtract the inner diameter from the outer diameter and divide the result by two.

4. Determine the Length

Use a tape measure or laser tool to measure the distance from one end of the tube to the other.

Tips for Accurate Measurements

To ensure precise measurements of aluminium tubes, keep the following tips in mind:

1. Use Proper Tools

Choose high-quality measuring tools suitable for the dimension being measured.

2. Verify Calibration

Ensure that measuring tools are properly calibrated to avoid inaccuracies.

3. Measure Multiple Points

Take measurements at multiple points along the tube to account for any irregularities.

4. Record Dimensions Accurately

Document all measurements clearly, especially when the tube will be used in critical applications.

Common Questions About Measuring Aluminium Tubes

Q: Why is wall thickness important?

A: Wall thickness determines the tube’s strength and suitability for various applications. Thicker walls can handle higher pressures and loads.

Q: Can I measure curved aluminium tubes?

A: Yes, but you must measure the straight sections separately. Specialized tools like flexible tape measures may be required for curved tubes.

Q: What if the tube has a non-standard shape?

A: For tubes with irregular shapes, use specialized calipers or 3D scanning tools to capture accurate measurements.

Conclusion

Measuring aluminium tubes accurately is essential for ensuring they meet the requirements of your specific application. By understanding the key dimensions, using the right tools, and following proper measurement techniques, you can ensure precision and compatibility. Whether for industrial, construction, or manufacturing purposes, accurate measurements lead to better outcomes and improved efficiency.
