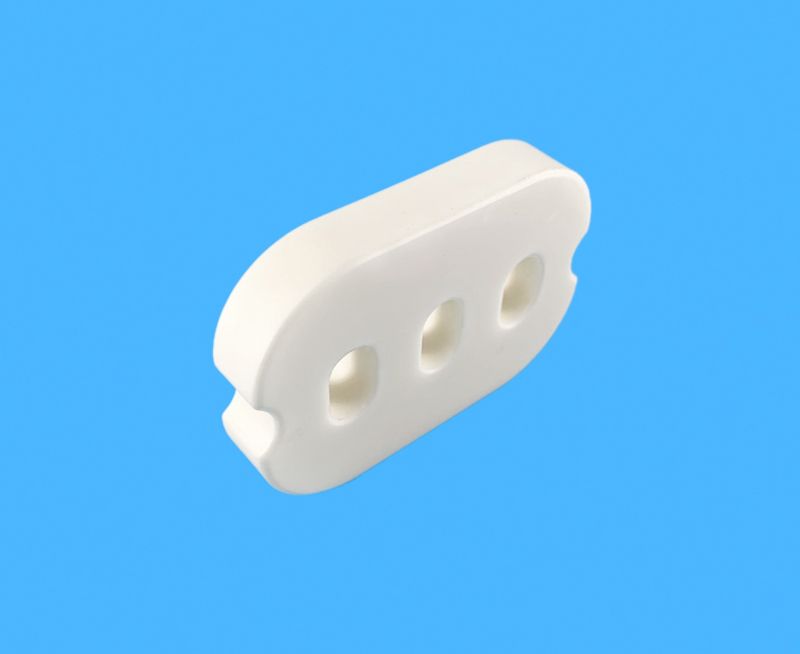

When designing ceramic parts, several factors must be considered to ensure both the functional performance and manufacturability of the parts. Ceramic materials, though strong and durable, can be brittle and sensitive to certain design aspects like stress concentration, temperature fluctuations, and material properties. Below are some key design recommendations for ceramic parts to achieve optimal performance, durability, and ease of manufacturing:
Design Recommendation: Ceramic materials are prone to fracture at sharp corners or edges due to stress concentration. It's best to design parts with rounded corners and smooth transitions between surfaces.
Why It’s Important: Sharp corners or sudden changes in geometry can create localized stress points that can lead to cracks or breakage, especially under mechanical load or thermal stress.
Design Recommendation: When designing parts with varying thicknesses, ensure the changes in cross-section are gradual, rather than abrupt. This will minimize stress risers and reduce the risk of cracking.
Why It’s Important: Abrupt thickness changes can cause uneven cooling during the firing process, which can lead to internal stresses and potential failure. Gradual transitions help maintain structural integrity.
Design Recommendation: Ceramics have limited flexibility during processing, so it’s important to account for shrinkage, firing variations, and other dimensional changes. Allow for sufficient tolerances, typically in the range of ±0.1 mm or more, depending on the material and part complexity.
Why It’s Important: Ceramic parts often shrink during the firing process, so precise tolerances need to be considered from the outset. Failing to account for shrinkage can lead to parts that don't fit or function as intended.
Design Recommendation: Choose the right type of ceramic material based on the application requirements. Different ceramic materials (e.g., alumina, zirconia, porcelain, silicon carbide) have different mechanical properties, such as hardness, toughness, and resistance to thermal shock. Match these properties to the intended use of the part.
Why It’s Important: Understanding the material’s properties will help you design a part that can withstand the required loads, temperatures, and environmental conditions. For instance, zirconia is often used for high-strength applications, while alumina is more common for general use.
Design Recommendation: Keep the wall thickness of ceramic parts consistent whenever possible. This helps to ensure uniform firing and reduces the risk of warping or cracking.
Why It’s Important: Varying wall thicknesses can cause uneven cooling during the firing process, which may result in warping, cracking, or dimensional inaccuracies. Consistent wall thickness ensures more predictable behavior during sintering and firing.
Design Recommendation: Consider how the ceramic part will be handled during manufacturing, assembly, and transport. For example, avoid thin parts that may be fragile or prone to chipping. Use features such as holes or recesses for handling tools if needed.
Why It’s Important: Ceramics can be brittle, and parts may break or chip during handling. Thoughtful design can minimize this risk, making the parts easier to manage during production and assembly.
Design Recommendation: For parts subjected to high mechanical loads, incorporate internal reinforcements like ribs, ribs with fillets, or metal inserts for additional strength and durability.
Why It’s Important: Ceramic materials may not handle high tensile stress well. Adding reinforcement structures can improve the overall strength and performance of the part, particularly in load-bearing applications.
Design Recommendation: Avoid overly complex geometries that may be difficult to manufacture or prone to defects like warping or cracking. Stick to simpler, robust shapes that are easier to produce and inspect.
Why It’s Important: Complex shapes with intricate details can introduce challenges in the molding, firing, and inspection processes. These parts may have higher failure rates, longer production times, and higher costs.
Design Recommendation: Consider the thermal expansion coefficient of the ceramic material and design the part to minimize thermal stresses. Where applicable, incorporate expansion joints or gaps to allow for thermal expansion and contraction.
Why It’s Important: Ceramics can expand and contract with temperature changes, and if the design doesn’t account for this, it can lead to cracking, warping, or part failure. Proper allowances for thermal movements ensure the part performs reliably in varying temperatures.
Design Recommendation: Avoid large flat sections that are too thin, as these are prone to warping during firing. If large areas are necessary, consider adding support structures or designing the part with ribs or gussets to reduce flat surface area.
Why It’s Important: Thin, large flat surfaces are vulnerable to uneven cooling and firing, which can lead to warping, cracking, or other defects. Support structures help distribute thermal stresses more evenly during firing.
Design Recommendation: Be mindful of the post-processing steps needed for the ceramic part, such as polishing, glazing, or machining. Design the part with features that are easy to finish after firing.
Why It’s Important: Post-processing operations can be time-consuming and costly. Designing parts with machining or polishing in mind can simplify these steps, improving the overall efficiency of production.
Design Recommendation: Ceramics can behave unpredictably during manufacturing due to their inherent brittleness and sensitivity to temperature. It’s essential to prototype and test your designs under real-world conditions to ensure performance before full-scale production.
Why It’s Important: Testing helps to identify potential issues early in the design phase, such as failure points or inconsistencies in the manufacturing process. Iterating on the design can lead to a more reliable and cost-effective part.
When designing ceramic parts, keeping in mind the material properties, manufacturing limitations, and the intended use of the parts is essential for success. By following these design recommendations, you can minimize the risk of defects, enhance the performance of the part, and ensure that the ceramic components meet their functional requirements. Whether you're designing for industrial machinery, medical devices, or decorative items, thoughtful ceramic part design plays a key role in achieving both durability and cost-effectiveness.
