What Is Silicon Nitride Ceramic?

Silicon nitride ceramic (Si₃N₄) is a highly durable, heat-resistant material commonly used in engineering and industrial applications. Known for its exceptional mechanical properties and stability under extreme conditions, silicon nitride is composed of silicon and nitrogen atoms and is often formed through hot pressing or sintering processes to create a dense, strong ceramic.

Key Properties of Silicon Nitride Ceramic

1. High Strength and Toughness: Silicon nitride exhibits excellent strength and resistance to fracture, making it ideal for demanding applications.

2. Thermal Stability: It maintains its strength and stability at temperatures exceeding 1,000°C, making it suitable for high-temperature environments.

3. Low Thermal Expansion: Silicon nitride has a low coefficient of thermal expansion, which helps reduce thermal stresses and enhances dimensional stability.

4. Wear and Corrosion Resistance: The ceramic is resistant to corrosion and wear, making it suitable for use in chemically aggressive or abrasive environments.

5. Electrical Insulation: It is a good electrical insulator, which allows it to be used in applications requiring resistance to electrical conductivity.

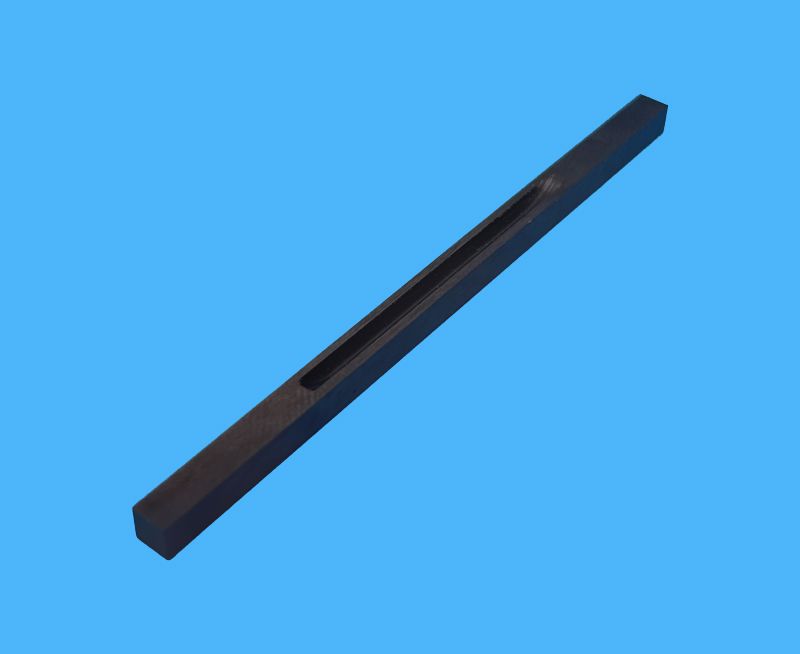

Silicon Nitride Ceramic Parts Machining

Types of Silicon Nitride Ceramics

1. Reaction-Bonded Silicon Nitride (RBSN)

Reaction-Bonded Silicon Nitride (RBSN) is formed by reacting silicon powder with nitrogen at high temperatures. This type of silicon nitride has lower density and mechanical strength than other types but is highly resistant to thermal shock. It’s suitable for applications requiring complex shapes, such as insulating materials, because of its relatively easier manufacturing process.

2. Hot-Pressed Silicon Nitride (HPSN)

Hot-Pressed Silicon Nitride (HPSN) is made by pressing silicon nitride powder at high temperatures and pressures. This process yields a dense and strong ceramic with excellent thermal and mechanical properties. HPSN is known for high fracture toughness, making it ideal for applications like cutting tools, bearings, and engine parts that require high strength and wear resistance.

3. Sintered Silicon Nitride (SSN)

Sintered Silicon Nitride (SSN) is formed by sintering silicon nitride powder with sintering aids like aluminum oxide and yttrium oxide. This type is renowned for its high strength and reliability. SSN is often used in demanding environments, such as in turbine blades, rotors, and automotive engine components, due to its excellent thermal stability and toughness.

4. Gas-Pressure Sintered Silicon Nitride (GPSN)

Gas-Pressure Sintered Silicon Nitride (GPSN) is similar to SSN but undergoes sintering in a high-pressure nitrogen atmosphere. This method produces highly dense ceramics with minimal porosity, offering enhanced mechanical properties. GPSN is commonly used in high-precision applications like aerospace and medical devices due to its excellent resistance to thermal stress and long-term durability.

Applications of Silicon Nitride Ceramic

Due to its unique combination of properties, silicon nitride ceramic is widely used in several industries:

- Automotive: Components like turbochargers, bearings, and engine parts.

-Aerospace: Parts for engines, turbine blades, and high-temperature applications.

- Medical: Used in some implantable devices and medical instruments due to its biocompatibility.

- Electronics: Insulation materials and components for electronic devices that operate under high temperatures.

- Industrial Machinery: Cutting tools, rollers, and molds where wear resistance is critical.

Silicon nitride ceramics offer a valuable solution for applications that demand both durability and stability in extreme environments.
